Peristaltic Pump Intelligent dosing Pump with Pump Head YZ1515x(0.007ml/min-2280ml/min) for Lab Application Liquid Transfer Metering Pump (110V) BT600FC

Specifications: Motor type: Stepping motor Speed range: 0.1-600 rpm Flow range: 0.007-2280ml/min Maximum power: 50W Direction : reversible (There are two transmission distribution modes to choose from. Repeated timing and quantitative filling can be performed. ) Control mode: 3.5-inch color LCD screen, touch operation, real-time display of operating parameters. Communication interface: RS485, MODBUS protocol is ready.Support for external signal and communication control（If you need an external control line, please contact us for remarks.） Applicable power supply: AC 110-220V（110v is sent by default, if you need 220v, please consult customer service in advance.） Pump tube material : silicone tube Suitable Tubing：17# 13# 14# 19# 16# 25# 18#（The default 17# pump tube, if you need other types of pump tubes, please consult customer service.） Package size:36*25*36cm. Net weight: 8 kg (17.63 lbs) Package: 1* Peristaltic pump 1* 2m length silicone tube（17#） 1* Pump head 1* Foot switch 2* Connector（for connecting hoses） 1* Instruction Manual 【NOTE】:D'not place this product in hazardous work areas, flammable and explosive environments, including but not limited to routine transmission of flammable liquids.

• 【Specification】BT600FC/YZ1515x ,flowrate range is 0.007~2280ml/min,maximum power: 50W, voltage: 110V-220(Send 110V by default),speed range: 0.1-600rpm.Package size: 36*25*36cm;weight: 8kg.

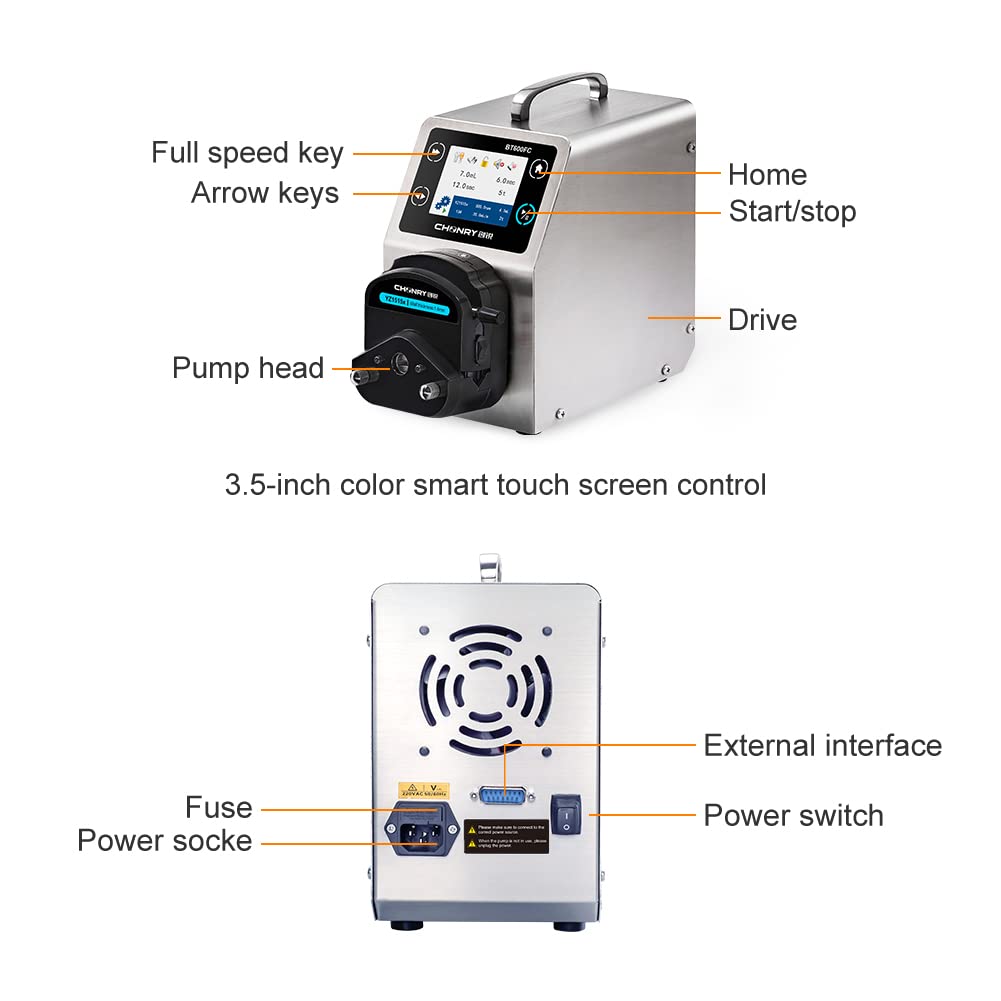

• 【LCD screen】3.5 inches LCD screen display(Two language modes, support Chinese and English display),touch button operation,real-time display of operating parameters, simple and convenient peristaltic pump.
• 【Modes】This small liquid dosing pump suitable Various working modes:Smart touch screen, transfer mode and dispense mode.(Repeated timing and quantitative filling can be performed.)Customer data saving function: can save 9 sets of data for customers.
• 【Control mode】This intelligent peristaltic pump machine can be used when it is connected to the power supply, and it is also equipped with a foot switch that can be used to control the start and stop.</br> RS485 communication interface and MODBUS communication protocol are available.External controller supports high and low electrical level to operate the start or stop.(If you need an external control line, please contact us for remarks.)
• 【Application】This intelligent flow peristaltic pump is suitable for the food industry, Detection reagent,university laboratories, scientific research institutions,solvent extraction,beauty industry,liposuction,filling and sub-packaging, and Biopharmaceutical,etc.
