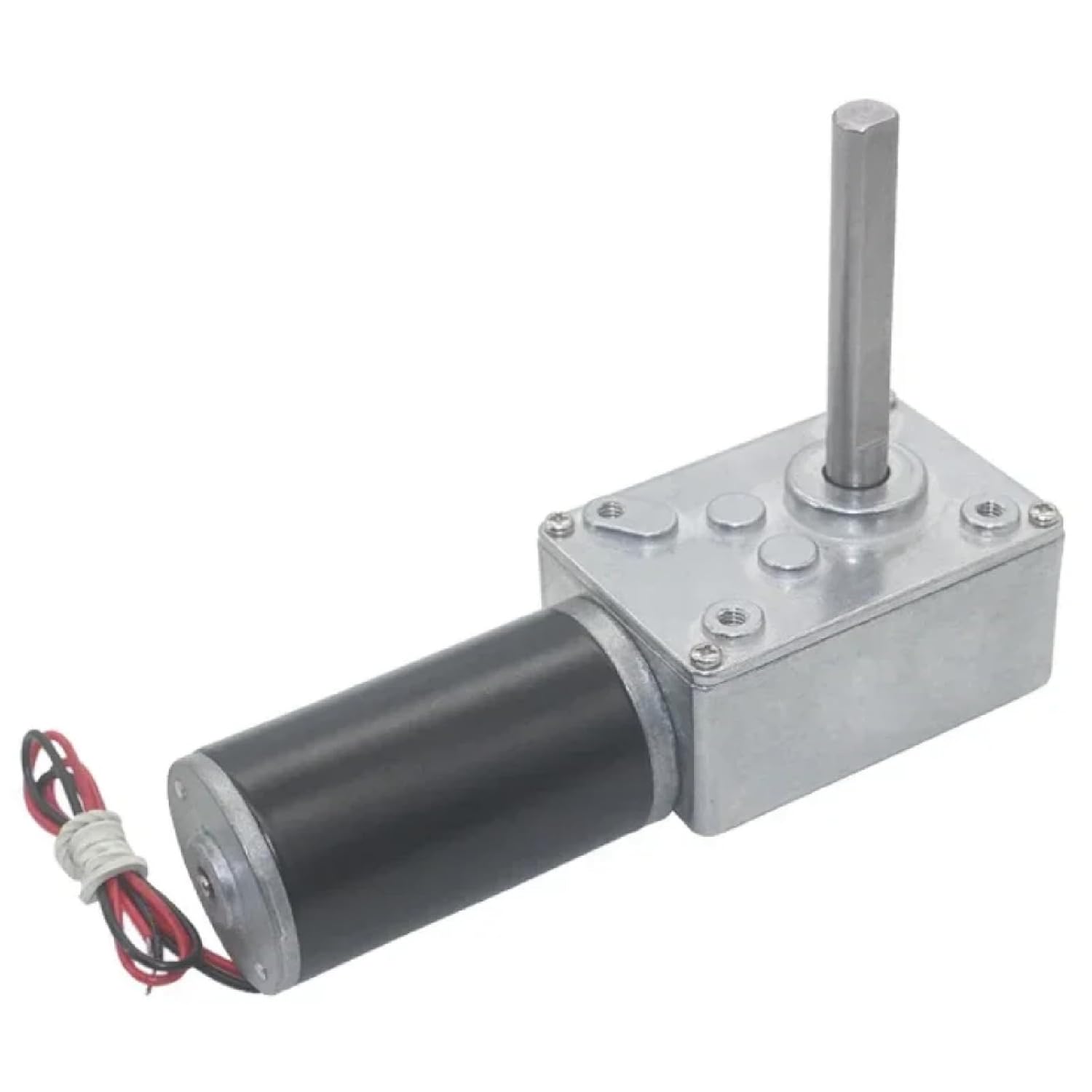

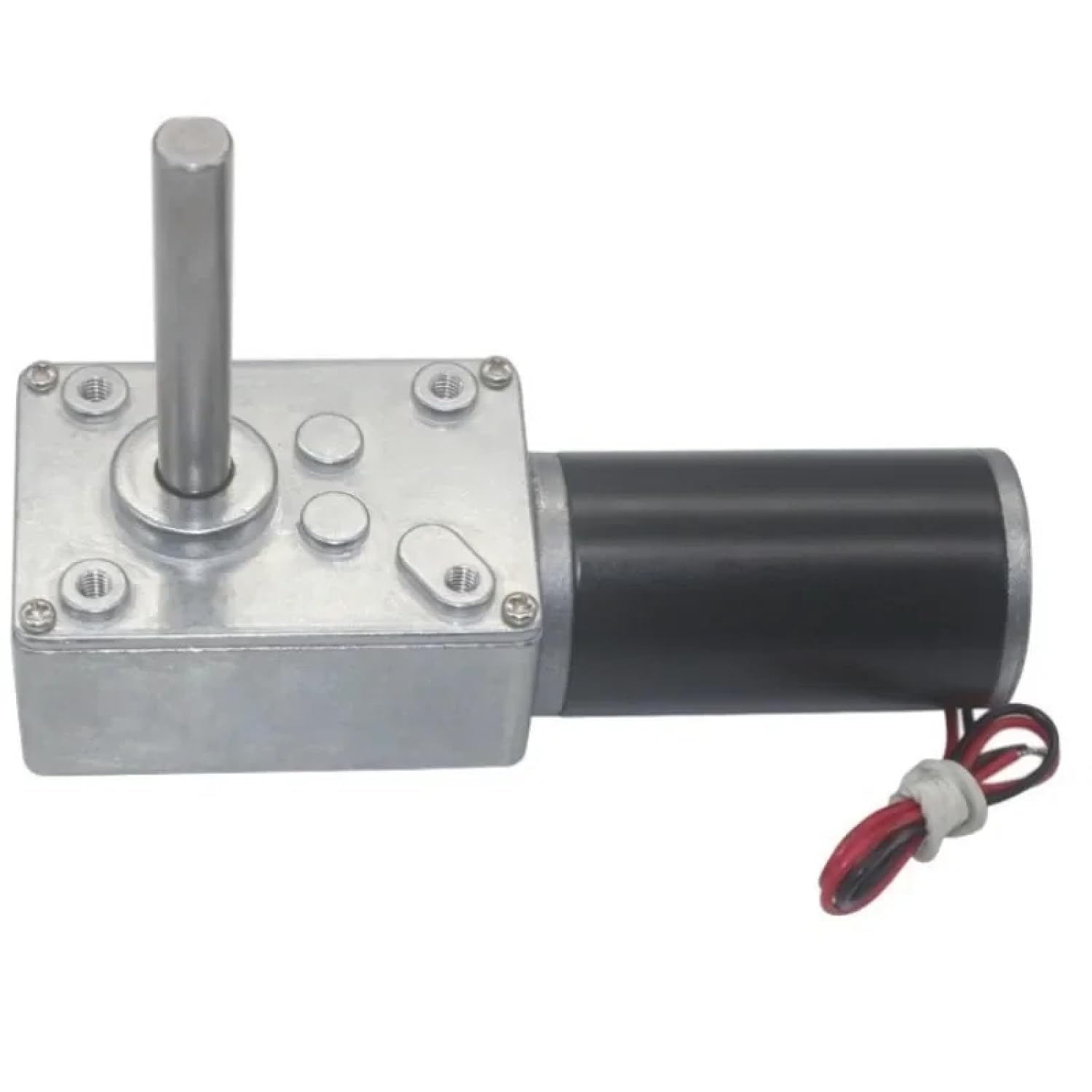

5840-31ZY DC Worm Gear Motor, 12V/24V, High Torque 1.6-70 kg.cm, Self-Locking, Brush Type, for Curtain Machines and Billboards (260rpm 24V)

The 5840-31ZY DC Worm Gear Motor is a compact and reliable solution for a wide range of mechanical applications, including curtain machines, billboards, and home equipment. Operating on both 12V and 24V DC power systems, this versatile motor delivers impressive torque output ranging from 1.6 to 70 kg.cm, making it well-suited for demanding tasks that require consistent, controlled movement. The self-locking worm gear design is a standout feature, allowing the motor to hold its position securely without drawing power when stationary. Built with a permanent magnet brush-type construction and housed in a durable 51mm body, this motor offers dependable performance in space-constrained installations. With a rated speed range of 12 to 470 RPM and a continuous current draw of 0.9 to 1.2A, it balances efficiency and power effectively. The rated power output falls between 3 and 5 watts, and the motor operates at up to 80% efficiency. Compatible with DC voltages below 36V, this motor is a practical choice for hobbyists, engineers, and professionals looking for a high-torque, self-locking gear motor solution.

• SELF-LOCKING WORM GEAR DESIGN: Maintains position reliably without continuous power draw, ideal for curtain machines and billboard applications.
• DUAL VOLTAGE COMPATIBILITY: Operates efficiently on both 12V and 24V DC power systems, offering flexible installation options.
• HIGH TORQUE OUTPUT: Delivers an impressive torque range of 1.6 to 70 kg.cm, suitable for demanding mechanical and industrial applications.
• COMPACT CONSTRUCTION: Features a 51mm housing with a permanent magnet brush-type DC motor rated at 3-5W for space-constrained installations.
• WIDE SPEED RANGE: Offers a rated speed range of 12 to 470 RPM, making it versatile for various home equipment and automation projects.
